> restart;

> f2:=x-> 2/Pi*(sin(x/2)): f3:=x-> 2/Pi*(sin(x/2)-sin(x)): f4:=x-> 2/Pi*(sin(x/2)-sin(x)+1/3*sin(3/2*x)):

> f5:= x -> Sum(2/(n*Pi)*(cos(n/2*Pi)-cos(n*Pi))*sin(n/2*x),n=1..5);

> h:= x-> piecewise(-2*Pi<x and x<-Pi,-1,-Pi<x and x < Pi, 0, Pi<x and x< 2*Pi, 1);

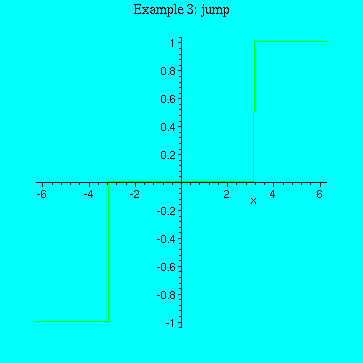

> plot(h(x), x=-2*Pi..2*Pi, title="Example 3: jump");

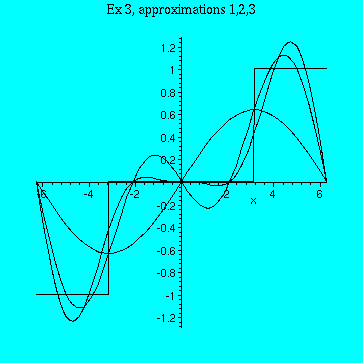

> plot([h(x),f2(x), f3(x), f4(x)], x=-2*Pi..2*Pi, title="Ex 3, approximations 1,2,3", color=[black,black,black,black]);

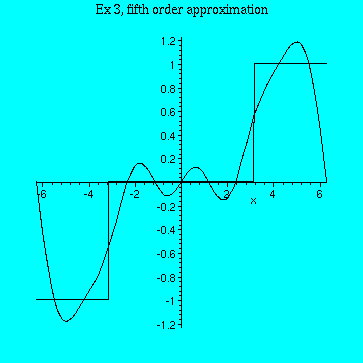

> plot([h(x), f5(x)], x=-2*Pi..2*Pi, title = "Ex 3, fifth order approximation", color=[black,black]);

> f25:= x -> Sum(2/(n*Pi)*(cos(n/2*Pi)-cos(n*Pi))*sin(n/2*x),n=1..25):

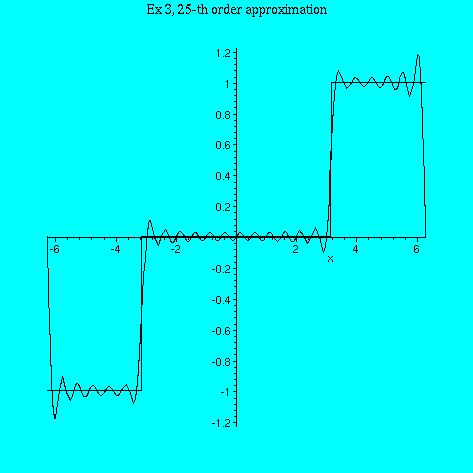

> plot([h(x), f25(x)], x=-2*Pi..2*Pi, title = "Ex 3, 25-th order approximation", color=[black,black]);

> f50:= x -> Sum(2/(n*Pi)*(cos(n/2*Pi)-cos(n*Pi))*sin(n/2*x),n=1..50):

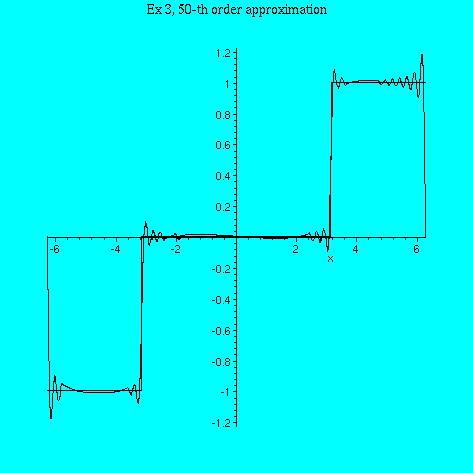

> plot([h(x), f50(x)], x=-2*Pi..2*Pi, title = "Ex 3, 50-th order approximation", color=[black,black]);

> f500:= x -> Sum(2/(n*Pi)*(cos(n/2*Pi)-cos(n*Pi))*sin(n/2*x),n=1..500):

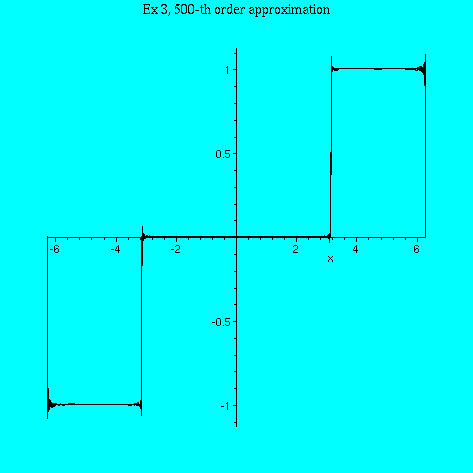

> plot([h(x), f500(x)], x=-2*Pi..2*Pi, title = "Ex 3, 500-th order approximation", color=[black,black]);

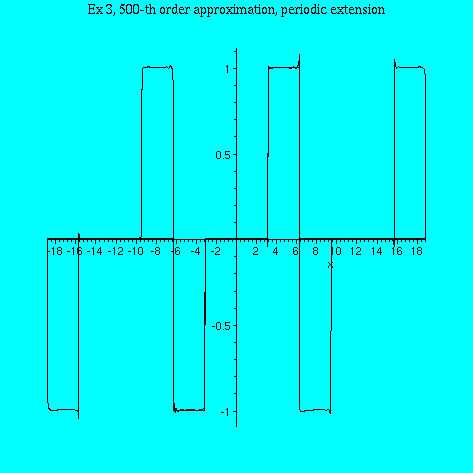

> plot([h(x), f500(x)], x=-6*Pi..6*Pi, title = "Ex 3, 500-th order approximation, periodic extension", color=[black,black]);

>
